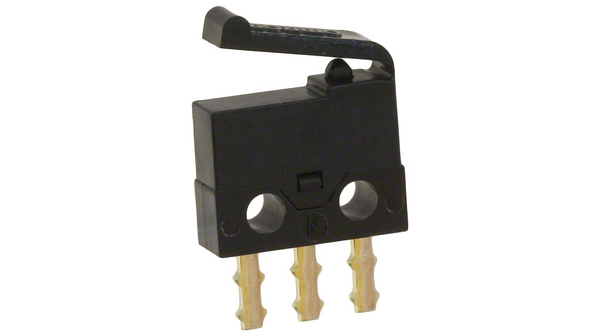

D2MQ-1L-105
Basic / Snap Action Switches Leaf lever 60 gf 0.5A Straight term
廠商型號:
D2MQ-1L-105
芯天下內部編號:
232-D2MQ-1L-105
生產廠商:
Omron Electronics
描述:
Basic / Snap Action Switches Leaf lever 60 gf 0.5A Straight term
產品類別:
Switches|Snap Action, Limit Switches|D2MQ

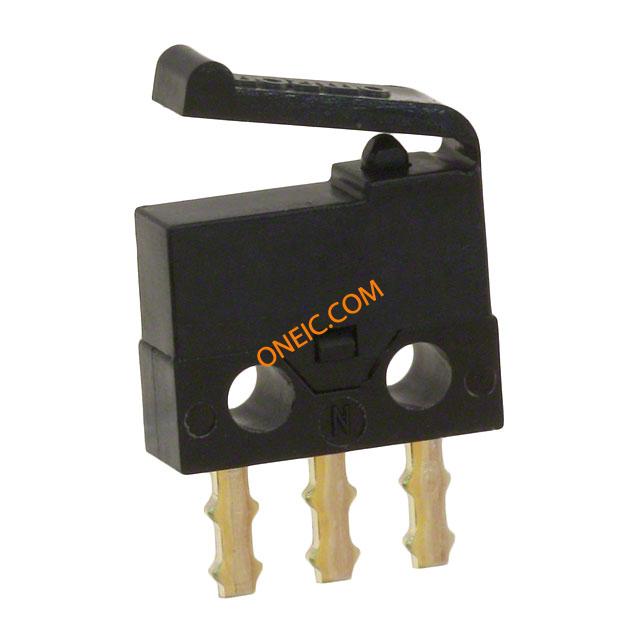

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Industry Aliases | D2MQ-1L-105 |
| Subcategory | Switch Snap Action |
| Lead Time | 96 Days |
| Packaging | Bulk |
| Differential Travel | 0.027" (0.7mm) |
| Switch Function | On-Mom |
| Current Rating | 50mA (DC) |
| Operating Force, Torque | 60gf |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Electrical Life | 10,000 Cycles |
| Operating Position | 0.264" (6.7mm) |
| Overtravel | 0.011" (0.3mm) |
| Operating Temperature | -15°C ~ 70°C |
| Actuator Type | Lever, Leaf |
| Standard Package | 100 |
| Voltage Rating - DC | 30V |
| Ingress Protection | IP40 |
| Pretravel | 0.094" (2.4mm) |
| Release Force | 8gf |
| Mechanical Life | 30,000 Cycles |
| Circuit | SPDT |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 100 |
| Product Category | Basic / Snap Action Switches |
| Mounting | Panel |
| Contact Form | SPDT |
| Voltage Rating DC | 30 V |
| Operating Force | 0.6 N |
| Series | D2MQ |
| Actuator | Lever |
| Part # Aliases | 365957 D2MQ1L105NC OMRD2MQ1L105 |
| Type | Miniature |
| RoHS | RoHS Compliant |
| ContactForm | SPDT |
| Current,Rating | 50mA |
| Termination | SolderLugs |
| Voltage,Rating | 30VDC |
| Leads | for PCB, straight |
| DC contacts rating (at resistance load) | 0.5 A / 30 VDC |
| Switching torque | 0.59N |
| Multiplicity | 1 |
| Switches features | with lever |
| Contacts configuration | SPDT |
| Gross weight | 0.29 g |
| Operating temperature | -15...70°C |
| Stable positions number | 1-position |
| Body dimensions | 8.2 x 2.7 x 6.5mm |
| Terminal pitch | 2.5mm |
| Sealing | IP40 |
| Switching method | ON-(ON) |
| Lever length | 7.7mm |
| Switch type | microswitch |
| Description | straight |
| Contacts | 1 change-over (CO) |
| Rated current | 0.05 A |
| Actuation | Spring lever |
| Actuation force | 0.59 N |
| Termination type | PCB |
| Rated voltage | 30 |
| Temperature range | -15...+70 °C |
| Protection rating | IP 40 |
| Contact material | Au plated |
